How to configure keyfile based authentication to existing MongoDB Replica sets without Downtime?

By · · ·




In this article , we will see how we can configure keyfile based internode authentication to existing Mongodb replica sets without downtime using Mongodb 5.0 Enterprise server on CentOS 7 .

OS Platform       : REDHAT/CENTOS 7 Linux

Software             : Mongodb 5.0 Enterprise Server

NOTE:

  • Be aware  configuring keyfile based authentication is a bare minimum form of security which can be used for testing and development environments. It's not intended to use it in Production environment.
  • In kind of production deployments, MongoDB recommends to use x.509 certificates for internal member authentication.

Prerequisites:

 To complete this demo, we need 3 centos servers as we are going to configure 3 member replica sets 1 will be primary and other 2 servers will act as a secondary servers which was deployed already in the article How to deploy Mongodb replica set on Linux ?.

Server name

IP Address

Role

mongodb1

192.168.1.200

Primary

mongodb2

192.168.1.201

Secondary

mongodb3

192.168.1.202

Secondary

Step 1: Connect to the primary node and create User Administrator

admin = db.getSiblingDB("admin")
admin.createUser(
  {
    user: "userdba",
    pwd: passwordPrompt(),
    roles: [ { role: "userAdminAnyDatabase", db: "admin" } ]
  }
)



Step 2: Connect to the primary node and Cluster Adminstrator


db.getSiblingDB("admin").createUser(
  {
    "user" : "mongoctladmin",
    "pwd" :  passwordPrompt(),
    roles: [ { "role" : "clusterAdmin", "db" : "admin" } ]
  }
)



Step 3: Update Client Applications

mongosh  -u mongoctladmin -password  -authenticationDatabase admin --host myreplica/mongodb1:27017,mongodb2:27017,mongodb3:27017

Step 4: Generate Key File

  • With Key file based authentication, each member mongod instances use the contents of key file as a shared password and authenticates with other members which are part of the replica sets.
  • Only members which have the same keyfile can authenticate and be part of the replica sets.

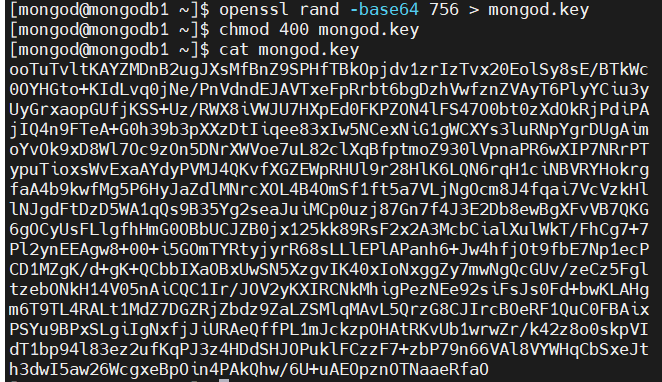

  • We are going to generate a keyfile from mongodb1 server using openssl utility.
openssl rand -base64 756 > mongod.key
chmod 400 mongod.key


Step 5: Copy keyfile to each member of the replica sets

scp mongod.key mongod@mongodb2:/home/mongod
scp mongod.key mongod@mongodb3:/home/mongod

Step 6 : Restart each secondary member with transitionToAuth tag enabled

Node 3 ::  Secondary member mongodb3

use admin
db.shutdownServer()




  • Update the config file of secondary node mongodb3 with transitionToAuth tag enabled and keyfile location.

vi /etc/mongod.conf

systemLog:
   destination: file
   path: "/var/log/mongodb/mongod.log"
   logAppend: true
storage:
   journal:
      enabled: true
storage:
   dbPath: /var/lib/mongo
processManagement:
   fork: true
net:
   bindIp: 127.0.0.1,mongodb3
   port: 27017
security:
   authorization: enabled  #enable authentication
   keyFile: /home/mongod/mongod.key #key file location
   transitionToAuth: true
replication:
  replSetName: "myreplica"

  • Restart the mongod with config changes in place
[mongod@mongodb3 ~]$ mongod -f /etc/mongod.conf





Node 2 ::  Secondary member mongodb2

use admin
db.shutdownServer()




  • Update the config file of secondary node mongodb2 with transitionToAuth tag enabled and keyfile location.

vi /etc/mongod.conf

systemLog:
   destination: file
   path: "/var/log/mongodb/mongod.log"
   logAppend: true
storage:
   journal:
      enabled: true
storage:
   dbPath: /var/lib/mongo
processManagement:
   fork: true
net:
   bindIp: 127.0.0.1,mongodb2
   port: 27017
security:
   authorization: enabled  #enable authentication
   keyFile: /home/mongod/mongod.key #key file location
   transitionToAuth: true
replication:
  replSetName: "myreplica"

  • Restart the mongod with config changes in place
[mongod@mongodb2 ~]$ mongod -f /etc/mongod.conf



Step 7 : Step down the primary member and restart with transitionToAuth tag enabled
  • Connect to the primary member of the replica set which is mongodb1 and issue stepdown command. This will make the current primary to be stepped down from primary to secondary and new primary node will be elected bu the quorum automatically.

rs.stepDown()


  • If we check the status of node. The newly elected primary will be displayed

rs.isMaster().primary


  • As per checking the newly elected primary is node 2 i.e mongodb2. So we are fine now for shutting down the old primary for tag changing and application read/write won't be interrupted.
  • Now connect to the old primary node i.e mongodb1 and shutdown the instance and restart with transitionToAuth tag enabled.

Node 1 ::  Old Primary node  mongodb1

use admin
db.shutdownServer()


  • Update the config file of old primary node mongodb1 with transitionToAuth tag enabled and keyfile location.

vi /etc/mongod.conf

systemLog:
   destination: file
   path: "/var/log/mongodb/mongod.log"
   logAppend: true
storage:
   journal:
      enabled: true
storage:
   dbPath: /var/lib/mongo
processManagement:
   fork: true
net:
   bindIp: 127.0.0.1,mongodb1
   port: 27017
security:
   authorization: enabled  #enable authentication
   keyFile: /home/mongod/mongod.key #key file location
   transitionToAuth: true
replication:
  replSetName: "myreplica"

  • Restart the mongod with config changes in place
[mongod@mongodb1 ~]$ mongod -f /etc/mongod.conf


  • So far we have updated the changes in all replica set members to use keyfile without downtime. Now we need to revert back the setting of transitionToAuth. From here onwards the client application must be authorized and use credentials to connect.


Step 8 : Restart the secondary members with transitionToAuth disabled

  • Now again connect to secondary nodes and restart it with transitionToAuth tag set to false .
use admin
db.shutdownServer()

vi /etc/mongod.conf

#here we are just setting the transitionToAuth tag false remaining parameters are set to same

security:
   authorization: enabled
   keyFile: /home/mongod/mongod.key #key file location
   transitionToAuth: false
replication:
  replSetName: "myreplica"


[mongod@mongodb1 ~]$mongod -f /etc/mongod.conf

[mongod@mongodb3 ~]$mongod -f /etc/mongod.conf


Step 9 : Step down the new primary member and restart with transitionToAuth tag set to false

use admin
rs.stepDown()  # to stepdown from primary to seconadry
db.isMaster().primary  # to check which is primary node after stepdown
db.shutdownServer()

vi /etc/mongod.conf

#here we are just setting the transitionToAuth tag false remaining parameters are set to same

security:
   authorization: enabled
   keyFile: /home/mongod/mongod.key #key file location
   transitionToAuth: false
replication:
  replSetName: "myreplica"


[mongod@mongodb2 ~]$mongod -f /etc/mongod.conf


Step 10 : Validate the connectivity from the client application

  • Now we will first test our application connection without credentials.It will through error if we are using without authentication.

$ mongosh   --host myreplica/mongodb1:27017,mongodb2:27017,mongodb3:27017

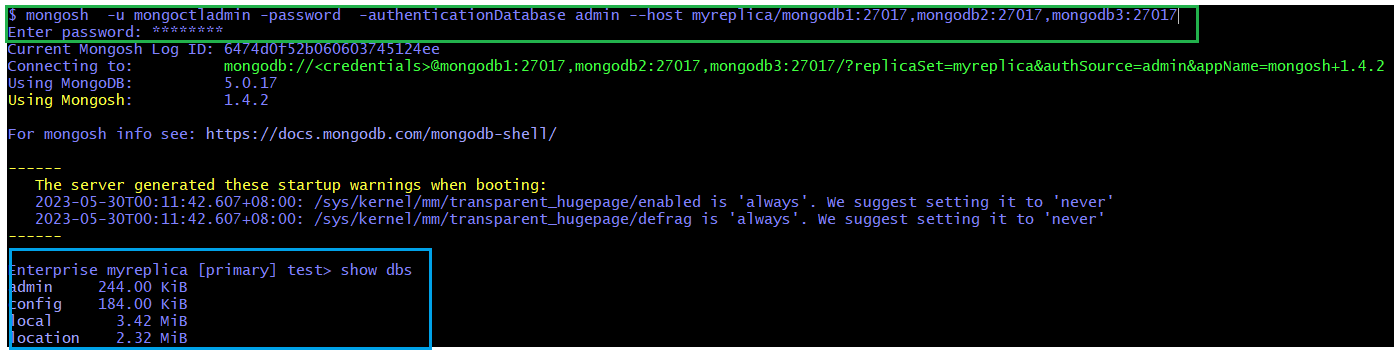

  • Let us validate with correct authentication mechanism in place and see the results.
$ mongosh  -u mongoctladmin -password  -authenticationDatabase admin --host myreplica/mongodb1:27017,mongodb2:27017,mongodb3:27017


Wrapping Up:

  • Thus we have reached the end of this article.We have configured keyfile based authentication to existing Mongodb Replica sets without downtime.
  •  Please be noted configuring keyfile based authentication is a bare minimum form of security.
  • In kind of production deployments, MongoDB recommends to use x.509 certificates for internal member authentication. In our coming series of article we will see how we can achieve the mongodb keyfile based internode authentication and x.509 based authentication.
